SCBA STATION MANIFOLD
This manifold arrangement is specifically designed for providing SCBA repair rooms a source of both high and low pressures for their testing and repair work from a single source of stored air.

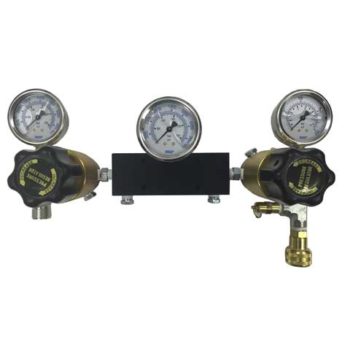

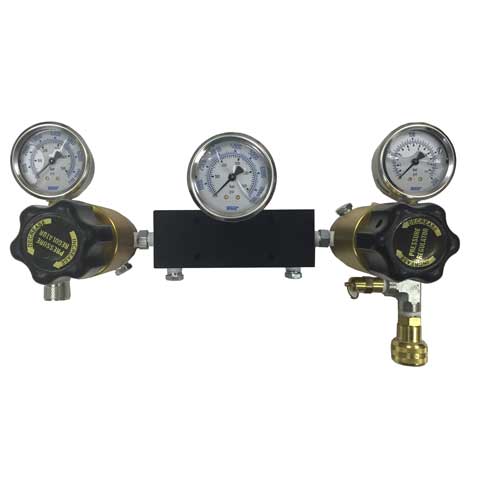

The wall mounted manifold has two separate regulators, each with its own gauge to show adjusted pressure settings. The low pressure regulator can be adjusted 0-200 PSI and also has a safety valve set at 200 PSI to avoid over pressurizing your application. This is a great source for shop air tools and comes complete with an industry standard quick disconnect. The high pressure regulator is adjustable for 1000-6000 PSI and is perfect for feeding POSICHEK stations. Output has a quick-disconnect.
Inlet connection comes into the manifold at top center, along with a gauge to indicate the incoming storage pressures. You should use your storage bank to feed this manifold.
|Dimensions||5 × 7 × 13 in|
