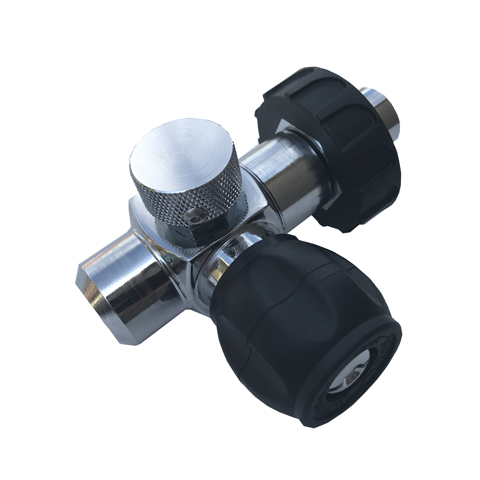

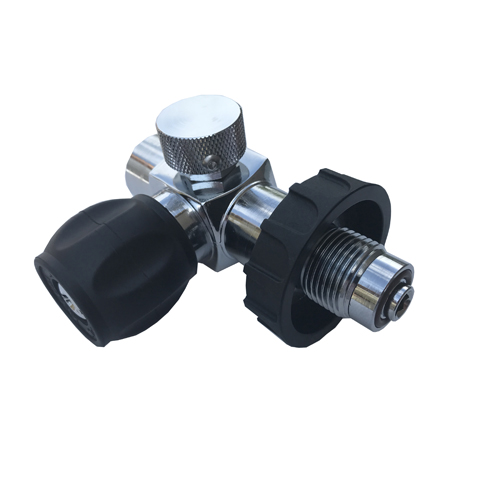

Din Filler with Compact Valve
This Compact Filler Valve with DIN hand tight connector is both convenient and durable. Inlet connection to valve is 1/4″ NPT Female. The Compact Valve also includes a large bleeder screw for easy venting (options available). Also on the side of the valve opposite of the bleeder, is a closed port, 1/4″ NPT Female, suitable for installing an optional gauge, thus making this a very compact design.
By using this Compact Filler which is rated for both 200 and 300 BAR fills, you may add options to the DIN connector for a variety of different uses. Please see the tab labeled “options” for more information.
|Dimensions||5 × 3 × 2 in|
