Cylinder Valve, CGA-347-N

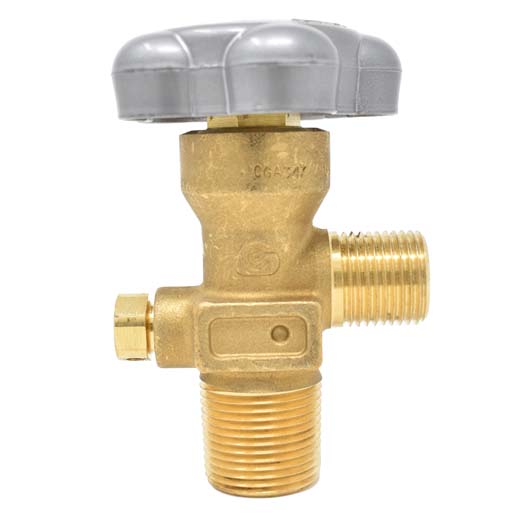

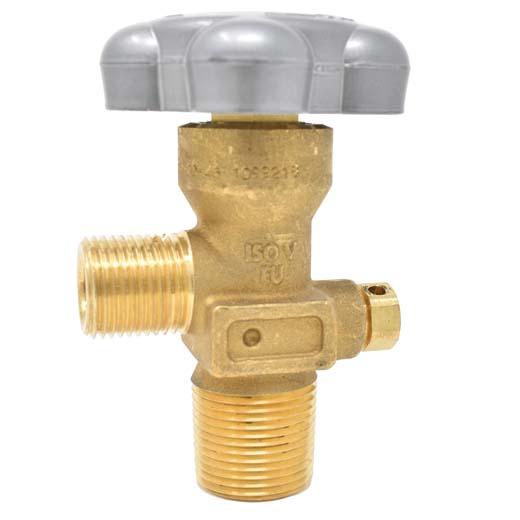

CGA-347-N is designated for AIR at pressures up to 5500 PSI. This valve has a standard 3/4” NGT Threads which are most commonly used with Norris Cylinders and any other brands that uses standard 3/4” connections. Typical storage pressures are 3600, 4500, and 5000 PSI.

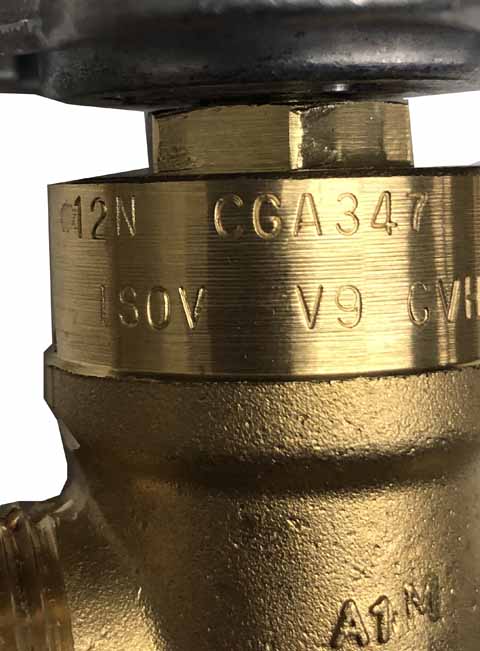

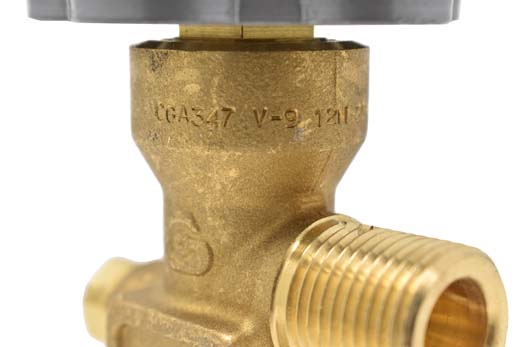

It is important to find the markings just under the handwheel stating “12N CGA347” to identify this style valve.
Please note this valve should not be used with the TAYLOR-WHARTON 4500 PSI light weight series storage bottles. See our part number CGA-347-TW for this application.
|Dimensions||5 × 4 × 4 in|
