Bauer SMART Package #23

Call for price

SKU: SMPKG-23 Category:

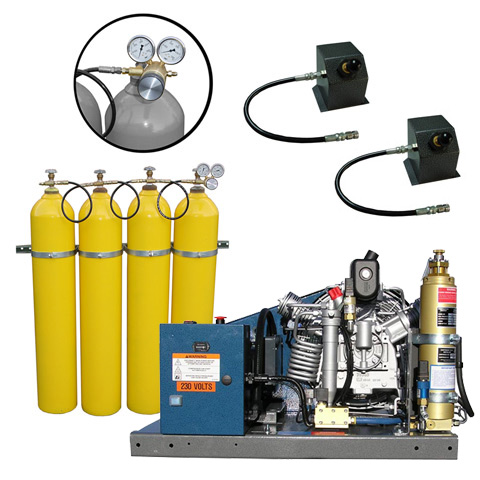

Product Description

This package is 230V single phase and ideal for fields that have electric power. Electric driven compressors are quieter and easier to maintain than engine driven units. Electric driven units can offer many conveniences not found elsewhere. We have bundled many of these options on this package together for an incredible savings.

Compressor – The new BAUER DMT08-E1PB is built for continuous duty at pressures of up to 5000 PSI. This compressor is equipped with an oil pump and oil filtration for extraordinary durability and longevity. A solid workhorse, this package is powered by a 7 1/2 HP, single phase, 230V electric motor. This package includes an enclosed electric box that houses the magnetic starter, start/stop push buttons, and an hourmeter. The pressure switch is wired for auto shut-off at final pressure and designed to restart with a push of a button. This compressor is also wired to shut down in the event of high temperature or low oil pressure.

Auto-Drain SystemWe have included the optional Auto Drain System which will allow the compressor to operate unattended. With the Auto Drain System, the condensate traps, will drain automatically every 15 minutes and shutdown. No longer do you have to manually drain the condensate.

Filtration – This package comes with the BAUER P-31 filtration system for extended run times between cartridge changes. One of the largest and most advanced filtration systems in a compressor of this size.

Frame – The DMT08-E1PB frame is now a single piece heavy gauge platform built for rugged operation. The electric motor is mounted on an adjustable base for easy belt tensioning.

Storage – This package comes with four (4) UN/ISO storage cylinders complete with wall mount track and cylinder clamps. We provide a 20 foot hose for connecting the compressor to the storage system. All pigtails and inter-connecting hardware is also included.

Regulated Output – This package includes an adjustable regulator with two (2) gauges and an output for regulated pressure (3000 PSI) and unregulated pressure (4500 PSI) for the push-button fill stations.

Push Button Fill Stations – This package includes two separate push button AIR-TAPPER-I fill stations. We provide two separate flex lines, each 20 foot in length to connect the fill stations to the storage. This arrangement allows for the fill stations to have one low (3000 PSI) and one high (4500 PSI) or if desired, both could be high.

PLEASE NOTE: This offer is not available in all areas. Due to shipping and freight considerations, do not use the online ordering system for this product. Please contact our office for assistance.
